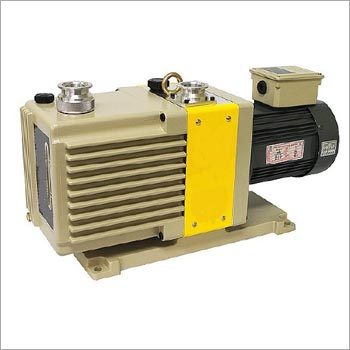

Vacuum Pump (RT 30)
Product Details:
X
Product Description
Vacuum Pump RT 30
| Pumping Speed | 500 l/min | |
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr ( 6.7 X 10-2 Pa ) |
| Gas Ballast Open | 5X10-2 torr ( 6.7 Pa ) | |
| Power Input | Standard | 220VAC/380VAC 3Ø 50/60Hz |
| Customer's Request (Voltage, Frequency and Phase) | ||
| Full Load Power | 1.5 kW (2 HP) | |
| Motor Speed | 1700 rpm | |
| Inlet and Outlet | Standard | NW40 |
| Option I | NW25 or Hose (Ø36 OD) | |
| Option II | Hose Nipple (Ø12 OD, Ø16 OD, or Ø26 OD | |
| Option III | Screw Nipple (3/8" Female) | |
| Oil Capacity | 2300 cc ( 2.3l ) | |
| Weight | 53 Kg | |
| Ambient Operation Temp. Range | 7~40oC | |
| Overall Dimension (mm) | 206(W) X 609(L) X 313(H) | |
