Vacuum Pumps (RTVP 75)
Product Details:
X
Product Description

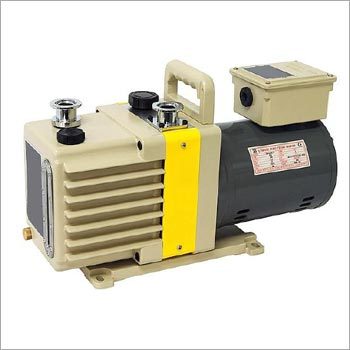

Vacuum Pumps RT 75
Our Vacuum Pumps RT 75 is advanced and technically very rich. It is compact and easy to operate.
| Pumping Speed | 85 l/min | |
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr ( 6.7 X 10-2 Pa ) |
| Gas Ballast Open | 5X10-2 torr ( 6.7 Pa ) | |
| Power Input | Standard | 220VAC 1Ø 50/60Hz |
| Option | 220VAC/380VAC 3Ø 50/60Hz | |
| Customer's Request (Voltage, Frequency and Phase) | ||
| Full Load Power | 0.4 kW ( 0.5 HP ) | |
| Motor Speed | 1700 rpm | |
| Inlet and Outlet | Standard | NW25 |
| Option I | Hose Nipple(Ø12 OD, Ø16 OD, or Ø26 OD) | |
| Option II | Screw Nipple (3/8" Female) | |
| Oil Capacity | 500 cc ( 0.5l ) | |
| Weight | 22 Kg | |
| Ambient Operation Temp. Range | 7~40oC | |
| Overall Dimension (mm) | 150(W) X 398(L) X 251(H) | |
